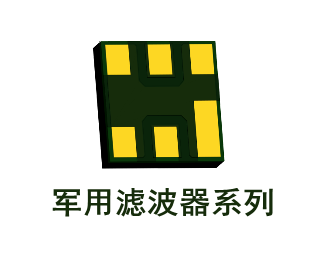

诺思军用滤波器型号大全
- 在线咨询
品牌：ROFS(诺思)
厂家型号：RSFK军用系列
包装方式：编带
上架时间：2022-03-05 22:46
产品描述：以下是诺思厂家生产的军用滤波器系列大全，包括型号、中心频率、使用宽带、中心插曲、典...
| 型号 | 中心频率 | 使用带宽 | 中心插损 | 典型阻带抑制（dBc） | 芯片尺寸 | 封装形式 |
| （MHz） | Min（MHz） | Max（dB） | （部分抑制指标） | （mm） | ||
| RSFK0800P000B1 | 800 | 点频 | 2.5 | ≥50@f0±400MHz | 1.40×1.80×0.22 | Cap芯片 |
| RSFK0900X000B1 | 900 | 点频 | 2 | ≥45@f0±100MHz | 1.45×1.45×0.40 | 裸芯片 |
| ≥45@f0+200MHz | ||||||
| ≥45@f0+300MHz | ||||||
| ≥45@f0+400MHz | ||||||
| ≥45@f0+500MHz | ||||||
| RSFK0943X035B1 | 943 | 35 | 3 | ≥12@DC～f0-33MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥14@f0+767～f0+2057MHz | ||||||
| RSFK0967X022C1 | 967 | 22 | 2.5 | ≥40@f0±30MHz | 1.60×1.60×0.40 | 裸芯片 |
| RSFK0967P022C1 | 967 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK0981X022C1 | 981 | 22 | 2.5 | ≥40@f0±30MHz | 1.60×1.60×0.40 | 裸芯片 |
| RSFK0981P022C1 | 981 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK0987X000B1 | 987 | 点频 | 2.5 | ≥40@f0±98.76MHz | 1.45×1.45×0.40 | 裸芯片 |
| RSFK0996X022C1 | 996 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.40 | 裸芯片 |
| RSFK0996P022C1 | 996 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1000X000B1 | 1000 | 点频 | 2 | ≥50@f0±100MHz | 1.45×1.45×0.40 | 裸芯片 |
| ≥50@f0+100MHz～f0+400MHz | ||||||
| RSFK1010X022C1 | 1010 | 22 | 2.5 | ≥40@f0±30MHz | 1.60×1.60×0.40 | 裸芯片 |
| RSFK1010P022C1 | 1010 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1025X022C1 | 1025 | 22 | 2.5 | ≥40@f0±30MHz | 1.60×1.60×0.40 | 裸芯片 |
| RSFK1025P022C1 | 1025 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1030P008B1 | 1030 | 8 | 2 | ≥50@f0+60MHz | 1.05×1.05×0.22 | Cap芯片 |
| RSFK1041X022C1 | 1041 | 22 | 2.5 | ≥40@f0±30MHz | 1.60×1.60×0.40 | 裸芯片 |
| RSFK1041P022C1 | 1041 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1057X022C1 | 1057 | 22 | 2.5 | ≥40@f0±30MHz | 1.60×1.60×0.40 | 裸芯片 |
| RSFK1057P022C1 | 1057 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1073X022C1 | 1073 | 22 | 2.5 | ≥40@f0±30MHz | 1.60×1.60×0.40 | 裸芯片 |
| RSFK1073P022C1 | 1073 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1090X022C1 | 1090 | 22 | 2.5 | ≥40@f0±30MHz | 1.40×1.40×0.40 | 裸芯片 |
| RSFK1090P008B1 | 1090 | 8 | 2 | ≥50@f0-60MHz | 1.05×1.05×0.22 | Cap芯片 |
| RSFK1090P022C1 | 1090 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1090G022C1 | 1090 | 22 | 2.5 | ≥40@f0±30MHz | 6.00×3.80×1.60 | 陶封芯片 |
| RSFK1100X000B1 | 1100 | 点频 | 2 | ≥40@f0±100MHz | 1.35×1.35×0.40 | 裸芯片 |
| ≥40@f0±200MHz | ||||||
| ≥40@f0±300MHz | ||||||
| RSFK1100X008B1 | 1100 | 8 | 1.5 | Group delay≤30ns@f0±4MHz | 1.35×1.35×0.40 | 裸芯片 |
| RSFK1100P010B1 | 1100 | 10 | 2.5 | ≥40@f0±1006MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥40@f0±200MHz | ||||||
| ≥40@f0±300MHz | ||||||
| RSFK1106X022C1 | 1106.5 | 22 | 2.5 | ≥40@f0±30MHz | 1.40×1.40×0.40 | 裸芯片 |
| RSFK1106P022C1 | 1106 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1110X030B1 | 1110 | 30 | 3 | ≥40@f0±50MHz | 1.35×1.35×0.40 | 裸芯片 |
| RSFK1124X022C1 | 1124 | 22 | 2.5 | ≥40@f0±30MHz | 1.40×1.40×0.40 | 裸芯片 |
| RSFK1124P022C1 | 1124 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1125P040B1 | 1125 | 40 | 2 | ≥30@f0±45MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥30@f0+925～f0+1075MHz | ||||||
| RSFK1141X022C1 | 1141.5 | 22 | 2.5 | ≥40@f0±30MHz | 1.40×1.40×0.40 | 裸芯片 |
| RSFK1141P022C1 | 1141 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1159X022C1 | 1159.5 | 22 | 2.5 | ≥40@f0±30MHz | 1.40×1.40×0.40 | 裸芯片 |
| RSFK1159P022C1 | 1159 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1178X022C1 | 1178 | 22 | 2.5 | ≥40@f0±30MHz | 1.40×1.40×0.40 | 裸芯片 |
| RSFK1178P022C1 | 1178 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1196X022C1 | 1196 | 22 | 2.5 | ≥40@f0±30MHz | 1.40×1.40×0.40 | 裸芯片 |
| RSFK1196P022C1 | 1196 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1200X000B1 | 1200 | 点频 | 2 | ≥45@f0±100MHz | 1.35×1.35×0.40 | 裸芯片 |
| ≥45@f0±200MHz | ||||||
| ≥45@f0-300MHz | ||||||
| RSFK1200X010B1 | 1200 | 10 | 1.5 | ≥45@DC～f0-35MHz | 1.35×1.35×0.40 | 裸芯片 |
| RSFK1200X030B1 | 1200 | 30 | 2 | ≥55@f0-60MHz | 1.40×1.40×0.40 | 裸芯片 |
| ≥50@f0+60MHz | ||||||
| RSFK1200G010B1 | 1200 | 10 | 3 | 38≥@f0-700～f0-35MHz | 6.00×3.80×1.60 | 陶封芯片 |
| 38≥@f0+30～f0+1200MHz | ||||||
| RSFK1205X034B1 | 1205 | 34 | 2 | ≥35@f0-65MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥35@f0-133MHz | ||||||
| ≥35@f0+51MHz | ||||||
| RSFK1215X022C1 | 1215 | 22 | 2.5 | ≥40@f0±30MHz | 1.40×1.40×0.40 | 裸芯片 |
| RSFK1215P022C1 | 1215 | 22 | 2.5 | ≥40@f0±30MHz | 1.45×1.45×0.22 | Cap芯片 |
| RSFK1217X020B1 | 1217 | 20 | 2 | ≥45@f0±40.99MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥55@f0±159MHz | ||||||
| RSFK1227X020B1 | 1227.6 | 20.5 | 1 | ≥20@f0±60MHz | 1.35×1.35×0.40 | 裸芯片 |
| RSFK1227X020B2 | 1227.6 | 20.5 | 2 | ≥45@f0±60MHz | 1.35×1.35×0.40 | 裸芯片 |
| RSFK1235X034B1 | 1235 | 34 | 2 | ≥35@f0-65MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥35@f0-133MHz | ||||||
| ≥35@f0+51MHz | ||||||
| RSFK1260X020B1 | 1260 | 20 | 2 | ≥40@f0-60MHz | 1.40×1.40×0.40 | 裸芯片 |
| ≥40@f0+55MHz | ||||||
| RSFK1260P020B1 | 1260 | 20 | 2.5 | ≥40@f0-60MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥40@f0+55MHz | ||||||
| Phase≤±5°@f0±10MHz | ||||||
| RSFK1265X034B1 | 1265 | 34 | 2 | ≥35@f0-63MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥35@f0-133MHz | ||||||
| ≥35@f0+51MHz | ||||||
| RSFK1268X020B1 | 1268.52 | 20.5 | 2.5 | ≥40@f0±60MHz | 1.35×1.35×0.40 | 裸芯片 |
| RSFK1268X020B2 | 1268.52 | 20.5 | 1 | ≥15@f0±60MHz | 1.35×1.35×0.40 | 裸芯片 |
| RSFK1268P020C1 | 1268 | 20 | 1.5 | ≥28@DC～1000MHz | 0.91×0.91×0.22 | Cap芯片 |
| ≥40@f0-41MHz | ||||||
| ≥45@f0+41MHz | ||||||
| ≥30@f0+231.52MHz～f0+531.48MHz | ||||||
| ≥35@f0+531.48MHz～f0+1231.48MHz | ||||||
| ≥30@f0+1231.48MHz～f0+1731.48MHz | ||||||
| RSFK1268P020C2 | 1268 | 20 | 0.8 | ≥28@DC～1000MHz | 0.91×0.91×0.22 | Cap芯片 |
| ≥40@f0-41MHz | ||||||
| ≥45@f0+41MHz | ||||||
| ≥45@f0+231.52MHz～f0+531.48MHz | ||||||
| ≥30@f0+531.48MHz～f0+1231.48MHz | ||||||
| ≥20@f0+1231.48MHz～f0+1731.48MHz | ||||||
| RSFK1268F020C1 | 1268.52 | 20 | 1.5 | ≥28@DC～1000MHz | 3.00×3.00×0.75 | 塑封芯片 |
| ≥40@f0-41MHz | ||||||
| ≥45@f0+41MHz | ||||||
| ≥30@f0+231.52MHz～f0+531.48MHz | ||||||
| ≥35@f0+531.48MHz～f0+1231.48MHz | ||||||
| ≥30@f0+1231.48MHz～f0+1731.48MHz | ||||||
| RSFK1268F020C2 | 1268.52 | 20 | 0.8 | ≥28@DC～1000MHz | 3.00×3.00×0.75 | 塑封芯片 |
| ≥40@f0-41MHz | ||||||
| ≥45@f0+41MHz | ||||||
| ≥45@f0+231.52MHz～f0+531.48MHz | ||||||
| ≥30@f0+531.48MHz～f0+1231.48MHz | ||||||
| ≥20@f0+1231.48MHz～f0+1731.48MHz | ||||||
| RSFK1290X050B1 | 1290 | 50 | 2.5 | ≥35@f0-90MHz | 1.25×1.25×0.40 | 裸芯片 |
| RSFK1290P050B2 | 1290 | 50 | 3 | ≥25@f0-90MHz | 1.25×1.25×0.22 | Cap芯片 |
| ≥35@f0+90MHz | ||||||
| RSFK1295X034B1 | 1295 | 34 | 2 | ≥35@f0-65MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥35@f0-133MHz | ||||||
| ≥35@f0+51MHz | ||||||
| RSFK1300X000B1 | 1300 | 点频 | 2 | ≥50@f0±100MHz | 1.20×1.20×0.40 | 裸芯片 |
| ≥50@f0-200MHz | ||||||
| ≥50@f0-300MHz | ||||||
| ≥50@f0-400MHz | ||||||
| RSFK1325X034B1 | 1325 | 34 | 2 | ≥22@DC～f0-133MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥30@f0-133～f0-65MHz | ||||||
| ≥25@f0+51～f0+475MHz | ||||||
| ≥35@f0-133MHz | ||||||
| ≥15@f0+475～f0+1175MHz | ||||||
| RSFK1340F008B1 | 1340 | 8 | 3 | ≥20@f0±20MHz | 3.00×3.00×0.75 | 塑封芯片 |
| ≥25@f0±30MHz | ||||||
| ≥25@f0±40MHz | ||||||
| ≥20@DC～f0-40MHz | ||||||
| ≥20@f0+40～f0+4660MHz | ||||||
| RSFK1355X034B1 | 1355 | 34 | 2 | ≥22@DC～f0-133MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥30@f0-133～f0-65MHz | ||||||
| ≥25@f0+51～f0+445MHz | ||||||
| ≥35@f0-133MHz | ||||||
| ≥15@f0+445～f0+1145MHz | ||||||
| RSFK1363P027B1 | 1363 | 27 | 4 | ≥40@f0±40MHz | 1.15×1.15×0.40 | Cap芯片 |
| RSFK1375X020B1 | 1375 | 20 | 2 | ≥55@f0±159MHz | 1.15×1.15×0.40 | 裸芯片 |
| RSFK1376P027B1 | 1376 | 27 | 4 | ≥40@f0±40MHz | 1.40×1.40×0.22 | Cap芯片 |
| RSFK1380X050B1 | 1380 | 50 | 2.5 | ≥45@f0-180MHz | 1.25×1.25×0.40 | 裸芯片 |
| ≥45@f0-360MHz | ||||||
| RSFK1390X044B1 | 1390 | 44 | 2 | ≥35@f0-60MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥35@f0-128MHz | ||||||
| ≥35@f0+46MHz | ||||||
| RSFK1390P016B1 | 1390 | 16 | 3 | ≥42@f0-35MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1400X000B1 | 1400 | 点频 | 2 | ≥50@f0±100MHz | 1.20×1.20×0.40 | 裸芯片 |
| ≥50@f0-200MHz | ||||||
| ≥50@f0-300MHz | ||||||
| ≥50@f0-400MHz | ||||||
| ≥50@f0-500MHz | ||||||
| RSFK1403P016B1 | 1403 | 16 | 3 | ≥42@f0-35MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1416P016B1 | 1416 | 16 | 3 | ≥42@f0-35MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1430P016B1 | 1430 | 16 | 3 | ≥42@f0-35MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1441X030B1 | 1441 | 30 | 2.5 | ≥35@DC～f0-341MHz | 1.25×1.25×0.40 | 裸芯片 |
| ≥40@f0-341～f0-50MHz | ||||||
| ≥40@f0+60～f0+1559MHz | ||||||
| RSFK1443P016B1 | 1443 | 16 | 3 | ≥42@f0-35MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1450X060B1 | 1450 | 60 | 2.5 | ≥45@f0+150MHz | 2.05×2.05×0.40 | 裸芯片 |
| ≥45@f0+270～f0+330MHz | ||||||
| RSFK1450P060B1 | 1450 | 60 | 3.5 | ≥34@DC～f0-850MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥15@f0-850～f0-90MHz | ||||||
| RSFK1456P016B1 | 1456 | 16 | 3 | ≥42@f0-35MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1470P016B1 | 1470 | 16 | 3 | ≥42@f0-35MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1474X005B1 | 1474 | 5 | 4 | ≥30@f0-7.25MHz | 1.20×1.20×0.40 | 裸芯片 |
| RSFK1483P016B1 | 1483 | 16 | 3 | ≥42@f0-35MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1496P016B1 | 1496 | 16 | 3 | ≥42@f0-35MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1500X030B1 | 1500 | 30 | 2.5 | ≥40@f0±100MHz | 1.25×1.25×0.40 | 裸芯片 |
| RSFK1500P000B1 | 1500 | 点频 | 2.5 | ≥45@f0±100MHz | 1.05×1.05×0.22 | Cap芯片 |
| RSFK1510P016B1 | 1510 | 16 | 3 | ≥42@f0-35MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1534X020B1 | 1534 | 20 | 1.5 | ≥25@f0-40.99MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥45@f0+40.99MHz | ||||||
| ≥55@f0±159MHz | ||||||
| RSFK1534X055B1 | 1534 | 55 | 2 | ≥35@f0-80MHz | 1.25×1.25×0.40 | 裸芯片 |
| ≥40@f0+80MHz | ||||||
| RSFK1561X010B1 | 1561.1 | 10 | 1 | ≥20@f0±40MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK1561X010B2 | 1561.1 | 10 | 2 | ≥45@f0±40MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK1567P018B1 | 1567 | 18 | 1 | ≥25@f0+45～f0+53MHz | 0.80×0.85×0.22 | Cap芯片 |
| RSFK1567F018B1 | 1567 | 18 | 0.8 | ≥40@f0-45～f0+53MHz | 3.00×3.00×0.75 | 塑封芯片 |
| RSFK1575X003B1 | 1575.42 | 3 | 1 | ≥20@f0±40MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK1575X003B2 | 1575.42 | 3 | 2 | ≥45@f0±40MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK1575F002B1 | 1575.42 | 2 | 1.3 | ≥38@f0-824～f0-121MHz | 3.00×3.00×0.75 | 塑封芯片 |
| ≥40@f0+66～f0+231MHz | ||||||
| RSFK1600X000B1 | 1600 | 点频 | 2.5 | ≥40@f0-600～f0-200MHz | 1.00×1.00×0.40 | 裸芯片 |
| ≥30@f0+100～f0+1600MHz | ||||||
| ≥40@f0-50～f0+50MHz | ||||||
| RSFK1600P000B1 | 1600 | 点频 | 2.5 | ≥45@f0±100MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥55@f0±400MHz | ||||||
| RSFK1615X012B1 | 1615 | 12 | 1.5 | ≥40@f0+487MHz | 1.00×1.00×0.40 | 裸芯片 |
| ≥40@f0+877MHz | ||||||
| RSFK1633P016B1 | 1633 | 16 | 3 | ≥42@f0-35MHz | 1.40×1.40×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1646P016B1 | 1646 | 16 | 3 | ≥42@f0-35MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1659P016B1 | 1659 | 16 | 3 | ≥42@f0-35MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1673P016B1 | 1673 | 16 | 3 | ≥42@f0-35MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1686P016B1 | 1686 | 16 | 3 | ≥42@f0-35MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1699P016B1 | 1699 | 16 | 3 | ≥42@f0-35MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1700P000B1 | 1700 | 点频 | 2.5 | ≥45@f0±100MHz | 1.05×1.05×0.22 | Cap芯片 |
| RSFK1713P016B1 | 1713 | 16 | 3 | ≥42@f0-35MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1720X040B1 | 1720 | 40 | 2 | ≥42@f0-35MHz | 1.25×1.25×0.40 | 裸芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1726P016B1 | 1726 | 16 | 3 | ≥42@f0-35MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1739P016B1 | 1739 | 16 | 3 | ≥42@f0-35MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1748X075B1 | 1748 | 75 | 3.5 | ≥19@DC～f0-348MHz | 1.40×1.40×0.40 | 裸芯片 |
| ≥20@f0+77～f0+2252MHz | ||||||
| RSFK1753P016B1 | 1753 | 16 | 3 | ≥42@f0-35MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1766P016B1 | 1766 | 16 | 3 | ≥42@f0-35MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥42@f0+35MHz | ||||||
| RSFK1779P027B1 | 1779 | 27 | 4 | ≥40@f0±40MHz | 1.40×1.40×0.22 | Cap芯片 |
| RSFK1800X000B1 | 1800 | 点频 | 2 | ≥35@f0±30MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK1800X050B1 | 1800 | 50 | 2 | ≥40@f0-60MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥40@f0+60MHz | ||||||
| RSFK1800P000B1 | 1800 | 点频 | 2.5 | ≥45@f0±100MHz | 1.05×1.05×0.22 | Cap芯片 |
| RSFK1800P025B1 | 1800 | 25 | 3 | ≥40@f0±98.76MHz | 1.05×1.05×0.22 | Cap芯片 |
| RSFK1800P050B2 | 1800 | 50 | 2.5 | ≥35@f0-60MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥35@f0+60MHz | ||||||
| RSFK1800P080B1 | 1800 | 80 | 2.5 | ≥37@f0-80MHz | 1.20×1.20×0.22 | Cap芯片 |
| ≥40@f0+80MHz | ||||||
| RSFK1830X010B1 | 1830 | 10 | 1.5 | ≥40@f0±30MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK1856P025B1 | 1856 | 25 | 1.5 | ≥30@f0±37MHz | 1.20×1.20×0.22 | Cap芯片 |
| RSFK1858X105B1 | 1858 | 105 | 3 | ≥17@DC～f0-93MHz | 1.20×1.20×0.40 | 裸芯片 |
| ≥13@f0+92～f0+2142MHz | ||||||
| RSFK1900X050B1 | 1900 | 50 | 3.5 | ≥30@f0±100MHz | 1.15×1.15×0.40 | 裸芯片 |
| RSFK1900P000B1 | 1900 | 点频 | 2.5 | ≥45@f0±100MHz | 0.87×1.05×0.22 | Cap芯片 |
| RSFK1905X010B1 | 1905 | 10 | 2 | ≥45@f0+45MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥45@f0+85～f0+95MHz | ||||||
| RSFK1955X070B1 | 1955 | 70 | 3.5 | ≥20@DC～f0-75MHz | 1.20×1.20×0.40 | 裸芯片 |
| ≥20@f0+70～f0+2045MHz | ||||||
| RSFK1995X030B1 | 1995 | 30 | 1.5 | ≥30@f0±35MHz | 1.15×1.15×0.40 | 裸芯片 |
| RSFK1995X050B1 | 1995 | 50 | 2 | ≥45@f0+175MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK1995F030B1 | 1995 | 30 | 1.5 | ≥30@f0±35MHz | 3.00×3.00×0.75 | 塑封芯片 |
| RSFK2000X000B1 | 2000 | 点频 | 2 | ≥40@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2000X010B1 | 2000 | 10 | 1.5 | ≥38@DC～f0-50MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥38@f0+50～2f0MHz | ||||||
| RSFK2000X090B1 | 2000 | 90 | 2.5 | ≥40@f0±260MHz | 1.15×1.15×0.40 | 裸芯片 |
| RSFK2013X020B1 | 2013 | 20 | 1.5 | ≥35@f0-1013～f0-193MHz | 1.00×1.00×0.40 | 裸芯片 |
| ≥40@f0-193～f0-93MHz | ||||||
| ≥38@f0+87～f0+1987MHz | ||||||
| RSFK2032X020B1 | 2032 | 20 | 2 | ≥45@f0+165～f0+185MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2046X010B1 | 2046 | 10 | 1.5 | ≥43@DC～f0-50MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥43@f0+50～2f0MHz | ||||||
| RSFK2065X020B1 | 2065 | 20 | 1.5 | ≥45@f0±60MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥45@f0±120MHz | ||||||
| RSFK2070X000B1 | 2070 | 点频 | 2 | ≥35@f0±240MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK2072X095B1 | 2072.5 | 95 | 3.5 | ≥30@f0+127.5～f0+227.5MHz | 1.15×1.15×0.40 | 裸芯片 |
| RSFK2072P095B1 | 2072 | 95 | 4 | ≥20@f0+127.5～f0+227.5MHz | 0.85×0.95×0.22 | Cap芯片 |
| RSFK2072F095B1 | 2072 | 95 | 4 | ≥33@f0+127.5～f0+227.5MHz | 3.00×3.00×0.75 | 塑封芯片 |
| RSFK2072F095B2 | 2072 | 95 | 4 | ≥33@f0+127.5～f0+227.5MHz | 3.00×3.00×0.75 | 塑封芯片 |
| Phase@f0 MHz≤±7° | ||||||
| RSFK2075X020B1 | 2075 | 20 | 2 | ≥45@f0+168～f0+188MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2097P045B1 | 2097 | 45 | 2.5 | ≥45@f0+163MHz | 1.05×1.05×0.22 | Cap芯片 |
| RSFK2100X000B1 | 2100 | 点频 | 2 | ≥40@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2150X006B1 | 2150 | 6.2 | 1.5 | ≥45@f0-50MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥45@f0+130MHz | ||||||
| ≥45@f0+180MHz | ||||||
| RSFK2185X030B1 | 2185 | 30 | 1.5 | ≥30@f0±35MHz | 1.15×1.15×0.40 | 裸芯片 |
| RSFK2185P030B1 | 2185 | 30 | 2.3 | ≥45@f0±35MHz | 0.81×0.71×0.22 | Cap芯片 |
| RSFK2185F030B1 | 2185 | 30 | 2.3 | ≥45@f0±35MHz | 3.00×3.00×0.75 | 塑封芯片 |
| RSFK2200X000B1 | 2200 | 点频 | 2 | ≥40@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2200P000B1 | 2000 | 点频 | 1.5 | ≥38@DC～f0-125MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥45@f0-125～f0-80MHz | ||||||
| Groupdelay≤10ns@f0±12.5MHz | ||||||
| RSFK2207X020B1 | 2207 | 20 | 2 | ≥45@f0-185～f0-165MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2242X020B1 | 2242 | 20 | 1.5 | ≥45@f0±60MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥45@f0±120MHz | ||||||
| RSFK2242X024B1 | 2242 | 24 | 1.5 | ≥30@f0-30MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥23@f0+2218MHz | ||||||
| RSFK2250X080B1 | 2250 | 80 | 3.5 | ≥16@DC～f0-200MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥16@f0+200～f0+3750MHz | ||||||
| RSFK2250X100B1 | 2250 | 100 | 4 | ≥30@f0-225～f0-130MHz | 1.15×1.15×0.40 | 裸芯片 |
| RSFK2250P100B1 | 2250 | 100 | 4 | ≥20@f0-225～f0-130MHz | 1.15×1.15×0.22 | Cap芯片 |
| RSFK2250F100B1 | 2250 | 100 | 4 | ≥30@f0-225～f0-130MHz | 3.00×3.00×0.75 | 塑封芯片 |
| RSFK2253X020B1 | 2253 | 20 | 2 | ≥45@f0-188～f0-168MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2280X014B1 | 2280 | 14 | 1.5 | ≥30@f0-30MHz | 1.15×1.15×0.40 | 裸芯片 |
| RSFK2282X015B1 | 2282 | 15 | 1.5 | ≥40@f0-180MHz | 1.40×1.40×0.40 | 裸芯片 |
| ≥40@f0+210MHz | ||||||
| ≥45@f0±60MHz | ||||||
| ≥45@f0±120MHz | ||||||
| RSFK2300X000B1 | 2300 | 点频 | 2 | ≥40@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2330X006B1 | 2330 | 6.2 | 1.5 | ≥45@f0-230MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥45@f0-180MHz | ||||||
| ≥45@f0-50MHz | ||||||
| RSFK2350D100C1 | 2350 | 100 | 3 | ≥33@f0-1600～f0-773MHz | 1.40×1.40×0.61 | 塑封芯片 |
| ≥33@f0-773～f0-670MHz | ||||||
| RSFK2350E100C1 | 2350 | 100 | 3 | ≥33@f0-1600～f0-773MHz | 1.10×0.90×0.60 | 塑封芯片 |
| ≥33@f0-773～f0-670MHz | ||||||
| RSFK2400X000B1 | 2400 | 点频 | 2 | ≥40@f0±100MHz | 1.40×1.40×0.40 | 裸芯片 |
| RSFK2400X020B1 | 2400 | 20 | 2.5 | ≥40@DC～2300MHz | 1.40×1.40×0.40 | 裸芯片 |
| ≥40@f0+60～f0+1100MHz | ||||||
| RSFK2442D079C1 | 2442 | 79 | 3.5 | ≥32@f0-1642～f0-442MHz | 1.40×1.40×0.61 | 塑封芯片 |
| ≥32@f0-442～f0-272MHz | ||||||
| RSFK2442E079C1 | 2442 | 79 | 3 | ≥32@f0-1642～f0-442MHz | 1.10×0.90×0.60 | 塑封芯片 |
| ≥32@f0-442～f0-272MHz | ||||||
| RSFK2460X020B1 | 2460 | 20 | 2 | ≥45@f0-60MHz | 1.40×1.40×0.40 | 裸芯片 |
| ≥45@f0-120MHz | ||||||
| RSFK2460G020B1 | 2460 | 20 | 3 | ≥40@f0-60MHz | 6.00×3.80×1.60 | 陶封芯片 |
| ≥40@f0-120MHz | ||||||
| RSFK2483P020B1 | 2483 | 20 | 2.5 | ≥40@f0-50MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥40@f0+50MHz | ||||||
| RSFK2492X012B1 | 2492 | 12 | 1.5 | ≥40@f0-877MHz | 1.40×1.40×0.40 | 裸芯片 |
| ≥40@f0-210MHz | ||||||
| RSFK2492F009C1 | 2492 | 9 | 5 | ≥33@f0-1492～f0-22MHz | 3.00×3.00×0.75 | 塑封芯片 |
| ≥33@f0-22～f0-12MHz | ||||||
| ≥33@f0+18～f0+208MHz | ||||||
| ≥33@f0+208～f0+508MHz | ||||||
| RSFK2500X000B1 | 2500 | 点频 | 2 | ≥35@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2560X028B1 | 2560 | 28 | 1.5 | ≥45@f0±80MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥55@f0±160MHz | ||||||
| RSFK2580X050B1 | 2580 | 50 | 2.2 | ≥45@f0-180MHz | 1.05×1.00×0.40 | 裸芯片 |
| RSFK2600X000B1 | 2600 | 点频 | 2 | ≥35@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK27000X000B1 | 2700 | 点频 | 2 | ≥35@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2730P061B1 | 2730 | 61 | 3 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK2791P061B1 | 2791 | 61 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK2800X000B1 | 2800 | 点频 | 2 | ≥35@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2800X090B1 | 2800 | 90 | 2.5 | ≥35@f0±260MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK2800X200B1 | 2800 | 200 | 2.5 | ≥35@f0±190MHz | 1.45×1.45×0.40 | 裸芯片 |
| RSFK2852P061B1 | 2852 | 61 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK2890P040B1 | 2890 | 40 | 2.5 | ≥30@f0-90MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥35@f0-200～f0-160MHz | ||||||
| ≥20@f0+60～f0+130MHz | ||||||
| ≥35@f0+120～f0+240MHz | ||||||
| ≥20@DC～f0-300MHz | ||||||
| ≥20@f0+240～f0+3110MHz | ||||||
| RSFK2900X000B1 | 2900 | 2 | ≥35@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 | |
| RSFK2900X008B1 | 2900 | 8 | 1.5 | ≥45@f0-140～f0-110MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0-70MHz | ||||||
| ≥30@f0-70MHz | ||||||
| ≥10@f0+30MHz | ||||||
| ≥30@f0+100～4200MHz | ||||||
| ≥50@70MHz | ||||||
| RSFK2900T000B1 | 2900 | 2.5 | ≥35@f0±100MHz | 3.00×3.00×1.10 | 陶封芯片 | |
| RSFK2905X050B1 | 2905 | 50 | 2.5 | ≥40@f0+90MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0-90MHz | ||||||
| RSFK2913P061B1 | 2913 | 61 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK2945X065B1 | 2945 | 65 | 2 | ≥40@f0+367.5～f0+432.5MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK2974P061B1 | 2974 | 61 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK3000X000B1 | 3000 | 2 | ≥35@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 | |
| RSFK3000X210B1 | 3000 | 210 | 2.5 | ≥35@f0±210MHz | 1.45×1.45×0.40 | 裸芯片 |
| RSFK3035P061B1 | 3035 | 61 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK3050X040B1 | 3050 | 40 | 2.5 | ≥40@DC～f0-150MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥40@f0+90～f0+950MHz | ||||||
| RSFK3097P061B1 | 3097 | 61 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK3100X000B1 | 3100 | 点频 | 2 | ≥35@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK3100P050B1 | 3100 | 50 | 2 | ≥30@DC～f0-75MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥35@f0+75～f0+1600MHz | ||||||
| RSFK3159P061B1 | 3159 | 61 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK3200X000B1 | 3200 | 点频 | 2 | ≥40@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK3200X080B1 | 3200 | 80 | 3 | ≥45@f0-560～f0-480MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0-260MHz | ||||||
| ≥25@f0+220～f0+300MHz | ||||||
| RSFK3200X224B1 | 3200 | 224 | 2.5 | ≥35@f0±210MHz | 1.45×1.45×0.40 | 裸芯片 |
| RSFK3200P053B1 | 3200 | 53 | 2.5 | ≥40@f0±200MHz | 1.20×1.20×0.22 | Cap芯片 |
| RSFK3221P061B1 | 3221 | 61 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK3240X000B1 | 3240 | 点频 | 2.5 | ≥40@f0±140MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK3250X300B1 | 3250 | 300 | 3 | ≥50@f0+590MHz | 1.00×1.00×0.40 | 裸芯片 |
| ≥45@f0+590MHz | ||||||
| ≥32@f0-390MHz | ||||||
| ≥45@f0-990MHz | ||||||
| ≥45@f0+2170MHz | ||||||
| RSFK3283P061B1 | 3283 | 61 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK3300X000B1 | 3300 | 点频 | 2 | ≥40@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK3345X060B1 | 3345 | 60 | 2 | ≥45@f0-2345～f0-145MHz | 1.00×1.00×0.40 | 裸芯片 |
| ≥45@f0+145～f0+1655MHz | ||||||
| RSFK3345P062B1 | 3345 | 62 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK3346X000B1 | 3346 | 点频 | 2.5 | ≥35@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK3390X040B1 | 3390 | 40 | 2.5 | ≥30@DC～f0-200MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0-200～f0-160MHz | ||||||
| ≥30@f0-90MHz | ||||||
| ≥20@f0+70～f0+130MHz | ||||||
| ≥40@f0+120～f0+240MHz | ||||||
| ≥20@f0+240～f0+1610MHz | ||||||
| RSFK3400X000B1 | 3400 | 点频 | 2 | ≥35@f0±100MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK3405X065B1 | 3405 | 65 | 2 | ≥40@f0-460MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK3407P062B1 | 3407 | 62 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK3420X239B1 | 3420 | 239 | 2.5 | ≥35@f0±230MHz | 1.45×1.45×0.40 | 裸芯片 |
| RSFK3469P062B1 | 3469 | 62 | 2 | ≥30@f0-131～f0-69MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0+69～f0+131MHz | ||||||
| RSFK3500X000B1 | 3500 | 点频 | 3 | ≥35@f0-800MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0+500MHz | ||||||
| ≥20@f0+3500MHz | ||||||
| RSFK3500T000B1 | 3500 | 点频 | 3 | ≥40@f0-800MHz | 3.00×3.00×1.10 | 陶封芯片 |
| ≥30@f0+1500MHz | ||||||
| ≥25@f0+3500MHz | ||||||
| RSFK3560X015B1 | 3560 | 15 | 2 | ≥35@f0±90MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK3600X000B1 | 3600 | 点频 | 3 | ≥40@f0-900MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥40@f0+400MHz | ||||||
| ≥35@f0+3600MHz | ||||||
| RSFK3600X020B1 | 3600 | 20 | 3 | ≥42@f0-70MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥42@f0+70MHz | ||||||
| RSFK3600X120B1 | 3600 | 120 | 2.5 | ≥35@f0±300MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK3600G020B1 | 3600 | 20 | 3 | ≥45@f0-70MHz | 6.00×3.80×1.60 | 陶封芯片 |
| ≥45@f0+70MHz | ||||||
| RSFK3660X256B1 | 3660 | 256 | 2.5 | ≥35@f0±230MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK3670X008B1 | 3670 | 8 | 2.5 | ≥30@f0-140～f0-110MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥10@f0-70MHz | ||||||
| ≥25@f0+100～f0+1300MHz | ||||||
| RSFK3670X019B1 | 3670 | 19 | 3 | ≥38@f0-70MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥42@f0+70MHz | ||||||
| RSFK3670P060B1 | 3670 | 60 | 2.5 | ≥40@f0-280MHz | 1.05×1.05×0.22 | Cap芯片 |
| RSFK3690P040B1 | 3690 | 40 | 2.5 | ≥20@DC～f0-200MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥30@f0-90MHz | ||||||
| ≥20@f0+60～f0+130MHz | ||||||
| RSFK3670G008B1 | 3670 | 8 | 2.5 | ≥35@f0-140～f0-110MHz | 6.00×3.80×1.60 | 陶封芯片 |
| ≥15@f0-70MHz | ||||||
| ≥30@f0+100～f0+1300MHz | ||||||
| RSFK3670G019B1 | 3670 | 19 | 3 | ≥42@f0-70MHz | 6.00×3.80×1.60 | 陶封芯片 |
| ≥42@f0+70MHz | ||||||
| Group delay≤20ns@f0±7.5MHz | ||||||
| RSFK3670G060B1 | 3670 | 60 | 2.5 | ≥40@f0±140MHz | 6.00×3.80×1.60 | 陶封芯片 |
| ≥40@f0±280MHz | ||||||
| RSFK3730X080B1 | 3730 | 80 | 1.5 | ≥40@DC～f0-180MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥20@f0-180～f0-140MHz | ||||||
| ≥45@f0+140～f0+270MHz | ||||||
| RSFK3740X000B1 | 3740 | 点频 | 3.5 | ≥30@f0-140MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0+30MHz | ||||||
| ≥20@f0+30～f0+260MHz | ||||||
| RSFK3740X060B1 | 3740 | 60 | 1.5 | ≥40@f0-140MHz | 1.15×1.15×0.40 | 裸芯片 |
| ≥45@f0+140～f0+1060MHz | ||||||
| RSFK3740F060B1 | 3740 | 60 | 3 | ≥34@f0-140MHz | 3.00×3.00×0.75 | 塑封芯片 |
| ≥37@f0+140～f0+1140MHz | ||||||
| RSFK3780X050B1 | 3780 | 50 | 2 | ≥45@f0-180MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK3800X120B1 | 3800 | 120 | 2.5 | ≥25@f0-1240～f0-1160MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥28@f0-600MHz | ||||||
| ≥20@f0+520～f0+680MHz | ||||||
| RSFK3920X085B1 | 3920 | 85 | 2 | ≥65@f0±280MHz | 1.00×1.00×0.40 | 裸芯片 |
| RSFK3920X200B1 | 3920 | 200 | 2.5 | ≥50@f0+180～f0+200MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥55@f0-3890～f0-3070MHz | ||||||
| ≥40@30MHz～850MHz | ||||||
| ≥35@850MHz～1400MHz | ||||||
| RSFK3920P200B1 | 3920 | 200 | 4 | ≥60@f0±280MHz | 1.05×1.05×0.22 | Cap芯片 |
| RSFK3920X274B1 | 3920 | 274 | 2.5 | ≥30@f0±250MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK4000X000B1 | 4000 | 点频 | 3 | ≥37@f0-3500～f0-500MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0～f0+3500MHz | ||||||
| ≥20@f0+4000MHz | ||||||
| ≥20@f0+5000MHz | ||||||
| ≥20@f0+6000MHz | ||||||
| ≥5@f0+6000～f0+10000MHz | ||||||
| RSFK4000X012B1 | 4000 | 12 | 2 | ≥40@DC～f0-400MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥45@f0-300MHz | ||||||
| ≥45@f0+270MHz | ||||||
| ≥45@f0+500～f0+800MHz | ||||||
| RSFK4000X160B1 | 4000 | 160 | 2.5 | ≥20@f0±300MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK4200X294B1 | 4200 | 294 | 2.5 | ≥30@f0±275MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK4300X010B1 | 4300 | 10 | 5 | ≥30@f0±5MHz | 1.20×1.20×0.40 | 裸芯片 |
| RSFK4300X020B1 | 4300 | 20 | 5 | ≥40@f0±10MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥5@f0-2300～f0-150MHz | ||||||
| ≥5@f0-150～f0+9700MHz | ||||||
| RSFK4350P200B1 | 4350 | 200 | 3 | ≥25@f0±1500MHz | 1.05×1.05×0.22 | Cap芯片 |
| RSFK4400X100B1 | 4400 | 100 | 2 | ≥35@f0±150MHz | 1.00×1.00×0.40 | 裸芯片 |
| Group delay≤5ns@f0±50MHz | ||||||
| RSFK4440X041B1 | 4440 | 41 | 3.2 | ≥33@f0-60MHz | 0.925×0.925×0.40 | 裸芯片 |
| ≥35@f0-100MHz | ||||||
| RSFK4440X060B1 | 4440 | 60 | 2.5 | ≥35@f0±140MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK4440X060B2 | 4440 | 60 | 2.5 | ≥30@f0-210～f0-100MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0+90～f0+280MHz | ||||||
| RSFK4400G060B1 | 4400 | 60 | 2.5 | ≥29@f0-940～f0-833MHz | 6.00×3.80×1.60 | 陶封芯片 |
| ≥32@f0-637～f0-450MHz | ||||||
| RSFK4440G060B1 | 4440 | 60 | 2.5 | ≥35@f0-140MHz | 6.00×3.80×1.60 | 陶封芯片 |
| ≥35@f0+140MHz | ||||||
| RSFK4440G060B2 | 4440 | 60 | 2.5 | ≥30@f0-210～f0-103MHz | 6.00×3.80×1.60 | 陶封芯片 |
| ≥35@f0+93～f0+280MHz | ||||||
| RSFK4500X000B1 | 4500 | 点频 | 3 | ≥35@f0-4000～f0-500MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0+500～f0+3000MHz | ||||||
| ≥20@f0+3500MHz | ||||||
| ≥20@f0+4500MHz | ||||||
| ≥20@f0+5500MHz | ||||||
| ≥5@f0+5500～f0+9500MHz | ||||||
| RSFK4500X010B1 | 4500 | 10 | 3 | ≥25@f0-140～f0-70MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥25@f0+100～f0+3000MHz | ||||||
| RSFK4500X315B1 | 4500 | 315 | 2.5 | ≥30@f0±300MHz | 1.05×1.05×0.40 | 裸芯片 |
| RSFK4500G010B1 | 4500 | 10 | 3 | ≥30@f0-140～f0-70MHz | 6.00×3.80×1.60 | 陶封芯片 |
| ≥30@f0+100～f0+3000MHz | ||||||
| RSFK4600X200B1 | 4600 | 200 | 4 | ≥26@f0-1400～f0-300MHz | 1.20×1.20×0.40 | 裸芯片 |
| ≥26@f0+300～f0+1400MHz | ||||||
| Group delay≤30ns@f0±100MHz | ||||||
| RSFK5000X000B1 | 5000 | 点频 | 3 | ≥30@f0-4500～f0-1000MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0-1000～f0-500MHz | ||||||
| ≥35@f0+500～f0+2500MHz | ||||||
| ≥20@f0+3000MHz | ||||||
| ≥20@f0+4000MHz | ||||||
| ≥20@f0+5000MHz | ||||||
| ≥5@f0+5000～f0+9000MHz | ||||||
| RSFK5050X000B1 | 5050 | 点频 | 3 | ≥32@f0-100MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥42@f0+100MHz | ||||||
| ≥2@f0-50MHz | ||||||
| ≥2@f0+50MHz | ||||||
| RSFK5190X140B1 | 5190 | 140 | 3 | ≥35@DC～f0-290MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0+310～f0+2810MHz | ||||||
| RSFK5190P140B1 | 5190 | 140 | 3 | ≥35@DC～f0-295MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥35@f0+305～f0+2805MHz | ||||||
| ≥40@f0+295MHz | ||||||
| ≥35@f0+595MHz | ||||||
| Phase≤±8°@f0±75MHz | ||||||
| RSFK5195P150B1 | 5195 | 150 | 3 | ≥35@DC～f0-295MHz | 1.05×1.05×0.40 | Cap芯片 |
| ≥35@f0+305～f0+2805MHz | ||||||
| ≥40@f0+295MHz | ||||||
| ≥35@f0+595MHz | ||||||
| Phase≤±8°@f0±75MHz | ||||||
| RSFK5200X020B1 | 5200 | 20 | 5 | ≥35@f0-200MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥20@f0-100MHz | ||||||
| ≥20@f0+80MHz | ||||||
| RSFK5200X050B1 | 5200 | 50 | 4 | ≥65@f0-100MHz | 1.25×1.25×0.40 | 裸芯片 |
| ≥70@f0+100MHz | ||||||
| Phase≤±5°@f0±25MHz | ||||||
| RSFK5500X000B1 | 5500 | 点频 | 3 | ≥30@f0-5000～f0-1500MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0-1500～f0-500MHz | ||||||
| ≥35@f0+500～f0+2000MHz | ||||||
| ≥20@f0+2500MHz | ||||||
| ≥20@f0+3500MHz | ||||||
| ≥20@f0+4500MHz | ||||||
| ≥5@f0+4500～f0+8500MHz | ||||||
| RSFK5500X048B1 | 5500 | 48 | 3 | ≥50@f0+1200MHz | 1.20×1.20×0.40 | 裸芯片 |
| RSFK5500G000B1 | 5500 | 点频 | 3 | ≥35@f0-1500MHz | 6.00×3.80×1.60 | 陶封芯片 |
| ≥35@f0-1000MHz | ||||||
| ≥35@f0-500MHz | ||||||
| ≥35@f0+1000MHz | ||||||
| ≥35@f0+1500MHz | ||||||
| ≥35@f0+200MHz | ||||||
| RSFK5760X000B1 | 5760 | 点频 | 3 | ≥35@DC～f0-320MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0+320～f0+1240MHz | ||||||
| ≥35@f0+1240～f0+2240MHz | ||||||
| RSFK5860X050B1 | 5860 | 50 | 2.7 | ≥35@f0-4860～f0-860MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥30@f0+140～f0+1140MHz | ||||||
| RSFK6000X000B1 | 6000 | 点频 | 3 | ≥30@f0-5500～f0-2000MHz | 1.25×1.25×0.40 | 裸芯片 |
| ≥35@f0-2000～f0-500MHz | ||||||
| ≥35@f0+500～f0+1500MHz | ||||||
| ≥20@f0+2000MHz | ||||||
| ≥20@f0+3000MHz | ||||||
| ≥20@f0+4000MHz | ||||||
| ≥5@f0+5000～f0+8000MHz | ||||||
| RSFK6395P010B1 | 6395 | 10 | 5 | ≥20@f0-95～f0-70MHz | 0.80×0.80×0.22 | Cap芯片 |
| ≥20@f0+70～f0+75MHz | ||||||
| Group delay≤30ns@f0±5MHz | ||||||
| Group delay ripple≤20ns@f0±5MHz | ||||||
| RSFK6395F010B1 | 6395 | 10 | 5.2 | ≥20@f0-95～f0-70MHz | 3.00×3.00×0.75 | 塑封芯片 |
| ≥20@f0+70～f0+75MHz | ||||||
| Group delay≤30ns@f0±5MHz | ||||||
| Group delay ripple≤20ns@f0±5MHz | ||||||
| RSFK6490X140B1 | 6490 | 140 | 3.5 | ≥25@DC～f0-290MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0+300MHz | ||||||
| ≥35@f0+600MHz | ||||||
| RSFK6495X150B1 | 6495 | 150 | 3.5 | ≥20@DC～f0-295MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥30@f0+305MHz | ||||||
| ≥30@f0+605MHz | ||||||
| RSFK6495P150B1 | 6495 | 150 | 3.5 | ≥25@DC～f0-295MHz | 1.05×1.05×0.22 | Cap芯片 |
| ≥35@f0+305MHz | ||||||
| ≥35@f0+605MHz | ||||||
| Phase≤±6°@f0±75MHz | ||||||
| RSFK6500X000B1 | 6500 | 点频 | 3 | ≥30@f0-6000～f0-2500MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0-2500～f0-500MHz | ||||||
| ≥35@f0+500～f0+1000MHz | ||||||
| ≥20@f0+1500MHz | ||||||
| ≥20@f0+2500MHz | ||||||
| ≥20@f0+3500MHz | ||||||
| ≥5@f0+4500～f0+7500MHz | ||||||
| RSFK6913X000B1 | 6913 | 点频 | 3 | ≥10@f0+98.76MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0-987MHz | ||||||
| ≥40@f0+987MHz | ||||||
| RSFK7000X000B1 | 7000 | 点频 | 3 | ≥30@f0-6500～f0-3000MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0-3000～f0-500MHz | ||||||
| ≥35@f0+500MHz | ||||||
| ≥35@f0+1000MHz | ||||||
| ≥30@f0+2000MHz | ||||||
| ≥20@f0+3000MHz | ||||||
| ≥5@f0+4000～f0+7000MHz | ||||||
| RSFK7500X000B1 | 7500 | 点频 | 3 | ≥30@f0-7000～f0-3500MHz | 1.05×1.05×0.40 | 裸芯片 |
| ≥35@f0-3500～f0-500MHz | ||||||
| ≥35@f0+500MHz | ||||||
| ≥30@f0+1500MHz | ||||||
| ≥20@f0+2500MHz | ||||||
| ≥15@f0+2500～f0+4500MHz | ||||||
| ≥5@f0+4500～f0+6500MHz |
上一篇：滤波器 RSFK2492F009C1
下一篇：滤波器 RSFK1567F018B1
274842526
